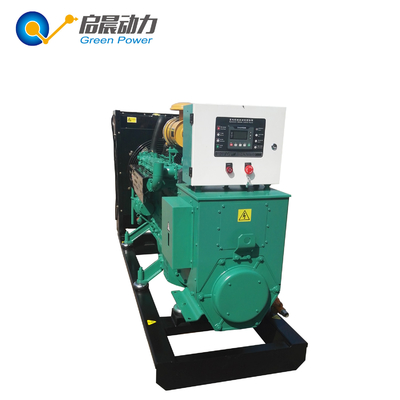

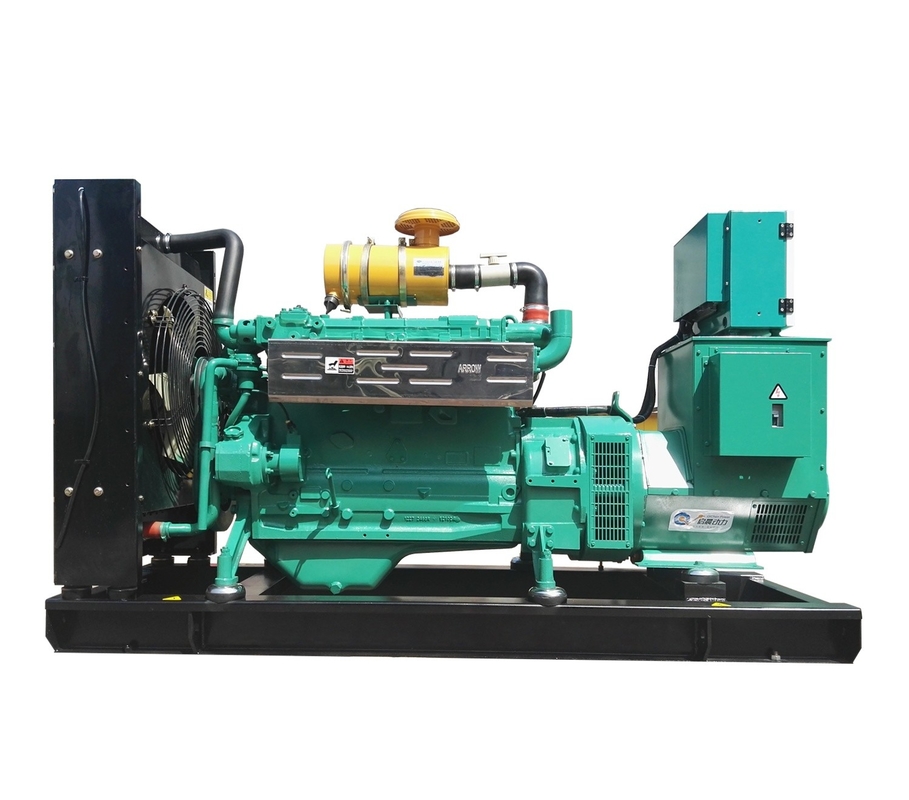

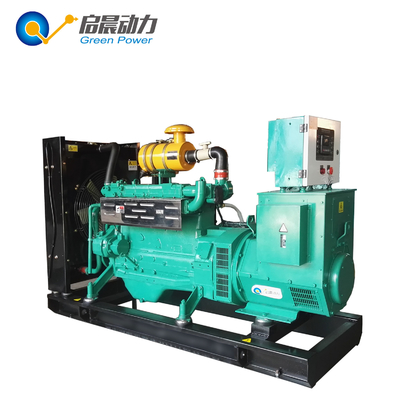

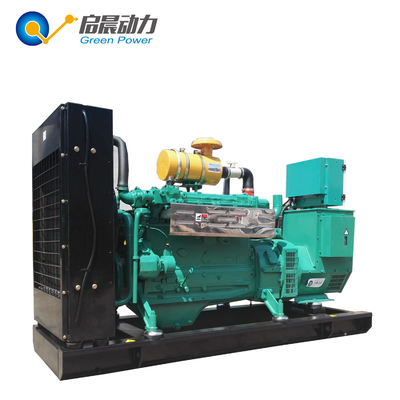

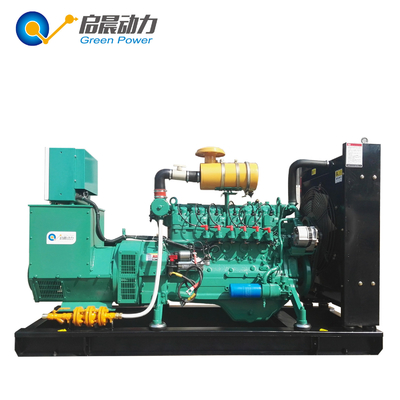

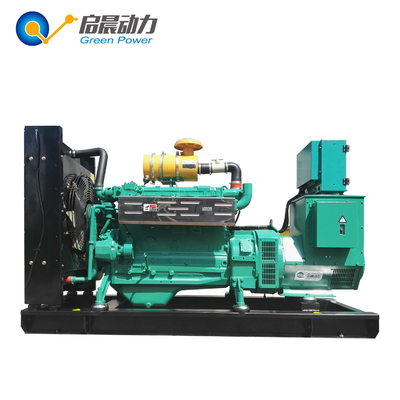

100KW Biogas Generator Set Open Type Generator Set

100KW Biogas Generator Set Open Type Generator Set

  • 100KW Biogas Generator Set Open Type Generator Set
  • 100KW Biogas Generator Set Open Type Generator Set
  • 100KW Biogas Generator Set Open Type Generator Set
  • 100KW Biogas Generator Set Open Type Generator Set
  • 100KW Biogas Generator Set Open Type Generator Set
  • 100KW Biogas Generator Set Open Type Generator Set
100KW Biogas Generator Set Open Type Generator Set
Product Details:
Place of Origin: Shandong, China
Brand Name: Green Power
Certification: ISO CE
Model Number: QC
Payment & Shipping Terms:
Price: $6,000.00 - $500,000.00/sets
Packaging Details: Packed in standard seaworthy packing such as plywood case.
Supply Ability: 500 Set/Sets per Month
Contact Now
Detailed Product Description
Warranty: 3months-1year Rated Voltage: 400 / 230V
Rated Current: 18 - 1800A Speed: 1500 / 1800rpm
Frequency: 50 / 60HZ Port: Qingdao Port Or Other China Ports

Main Products
100KW Biogas Generator Set Open Type Generator Set 0

Main Products

We produce gas generator sets, diesel generator sets

and related spare parts.


Genset Types

Open Type / Silent Type / Containerized Type

Trailer Type / CHP Unit etc


OEM Service

Meet customers' special needs.



Gas Fuels

Biogas, natural gas, LPG, coal mine gas, oil associated gas, landfill etc.


Application Fields

Industries, energy, railways, telecommunications, navigation, chemical industry, mining, water conservancy, construction, islands, farming and other fields.

100KW Biogas Generator Set Open Type Generator Set 1
100KW Biogas Generator Set Open Type Generator Set 2

Engine Brand Parter

Steyr / DEUTZ / Cummins / ISUZU / MITSUBISHI / Perkins / Lovol / MTU / Volvo / DOOSAN etc optional


Alternator Brand Parter

Stamford / Marathon / Leroy-Somer / Stamford Copy etc;

Brushless Alternator


Control System Parter

Smartgen / Deepsea / ComAp / DEIF etc optional

Product Description

Product Features

* High power and maximum efficiency
* Low operating costs as a result of low levels of lubricant and fuel consumption as well as extended service intervals
* Low emissions due to state-of-the-art combustion technology
* Low space requirement due to compact design
* Reliable in use thanks to field-tested technology
* Long service life resulting from application-specific design

Standard Specifications

Air Inlet
* Mounted air filter
Gas/Ignition System
* Air/Fuel mixer; automatic adjustment according to fuel gas characteristics
* Individual cylinder ignition coils mounted direct to the spark plugs
Lubrication System
* Wet sump with filler and dipstick
* Spin-on oil filter
Cooling System
* Thermostatically-controlled system with gear-drivencirculation pump and belt-driven pusher fan
* Mounted radiator and piping
* Guard for fan and rev parts
Electrical Equipment
* 12/24 volt electric starter motors
* Ecu control system
* Battery base and power switch
* Battery charger
Exhaust System
* Exhaust hose
* Silencer (for industrial)
Alternator
* Automatic voltage regulator (AVR)
Control System
* DSE7220 control system
* Air circuit breaker (MCCB)
Mountings
* Shock absorber
* Manual Oil pump (For an oil change)
Literature
* User Handbook
Product Parameters
GENSET
Genset Type
Open Type / Silent Type / Containerized Type / Trailer Type / CHP Unit etc
Rated Power
8KW - 1500KW
Rated Voltage
400 / 230V
Output Type
AC Three Phase
Speed
1500 / 1800rpm
Frequency
50 / 60HZ
Fuel Consumption
≤0.3m3/KW.h
Noise Level
65 - 100 (db)
Gas Fuels
Biogas, natural gas, LPG, coal mine gas, oil associated gas, landfill etc
Optional Devices
CHP device, soundproof cabinet, automatic grid parallel connection device, emergency cooling system etc
ENGINE
Engine Brand
Steyr / DEUTZ / Cummins / ISUZU / MITSUBISHI / Perkins / Lovol / MTU / Volvo /
DOOSAN etc optional
Cooling System
Water Cooled
Speed Governor
Electronic
ALTERNATOR
Alternator Brand
Stamford / Marathon / Leroy-Somer / Stamford Copy etc; Brushless Alternator
Exciter Type
Self- excitation, Brushless with AVR
Insulation Class
H
Protection Grade
IP21 / 22 / 23  optional
CONTROL SYSTEM
Modules Brand
Smartgen / Deepsea / ComAp / DEIF etc optional
Product Details Show
100KW Biogas Generator Set Open Type Generator Set 3
100KW Biogas Generator Set Open Type Generator Set 4
100KW Biogas Generator Set Open Type Generator Set 5
100KW Biogas Generator Set Open Type Generator Set 6
100KW Biogas Generator Set Open Type Generator Set 7
100KW Biogas Generator Set Open Type Generator Set 8
100KW Biogas Generator Set Open Type Generator Set 9
100KW Biogas Generator Set Open Type Generator Set 10
Our Service
PACKING & DELIVERY
Packing
Packed in standard seaworthy packing such as plywood case.
Delivery
Within 25 days after payment received.
PAYMENT & WARRANTY
Payment Terms
* 30% deposit (T/T), balance (70%) to be paid before shipment (for bulk cargo)
* 30% deposit (T/T), balance (70%) to be paid after receipt of the B/L copy (for container order)
* L/C at sight (for container order)
Warranty
* 1500 running hours / 1 year
*  During the guarantee period, we freely supply quick-wear parts for the possible problems except for the incorrect operation.
*  After expiration, we supply cost reasonable spare parts for genset maintenance.
CUSTOMER SERVICE
Pre-sale Service
Recommend proper genset; Tech support; Special equipping design.
In-sale Service
Application tech support; Installation test; Quality control.
After-sale Service
Tech training; Maintenance; Operator Training.
Lifetime Service
Maintenance service; Tech consultancy; Components Supply.
