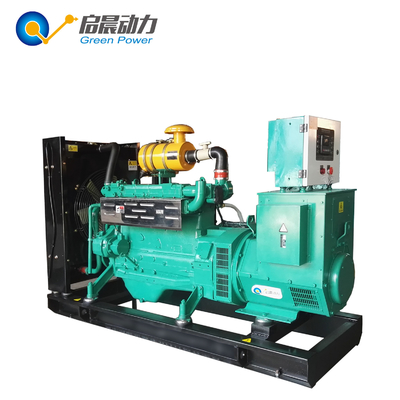

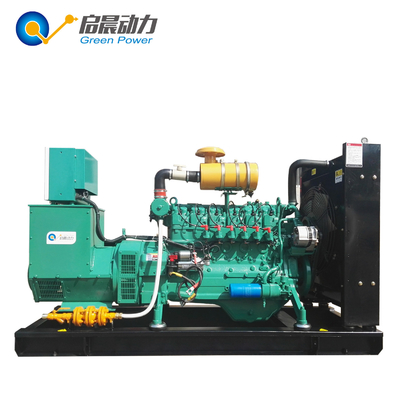

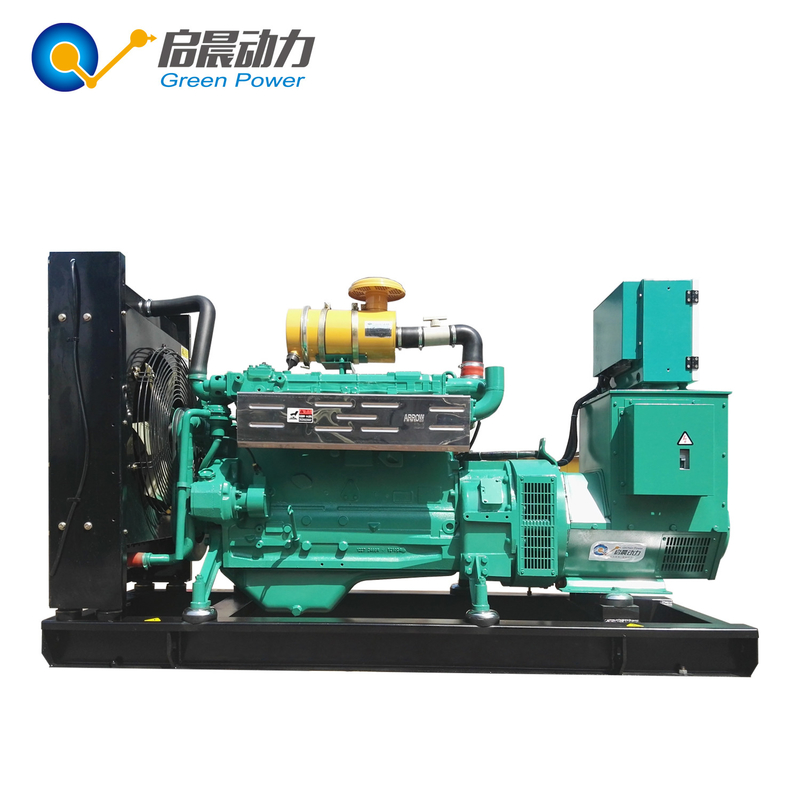

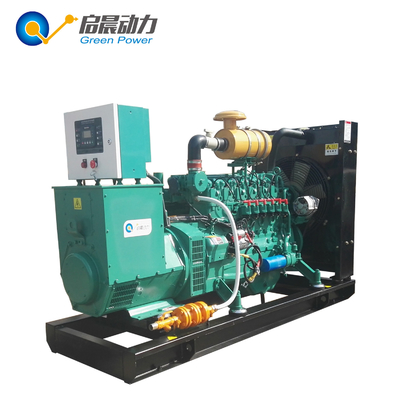

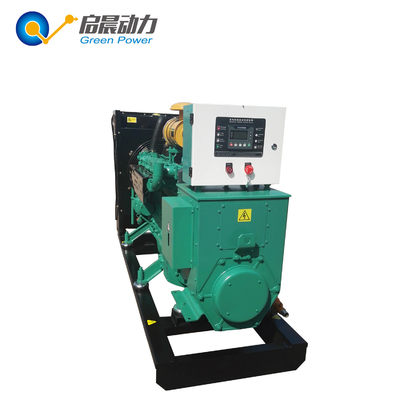

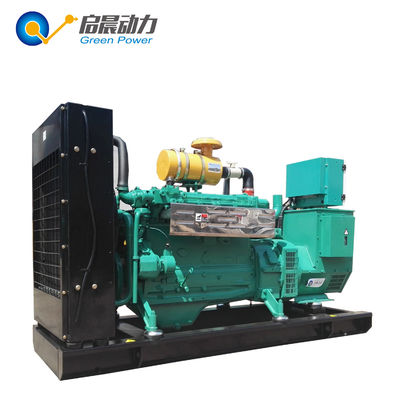

50kw 80kw 100kw 120kw 150kw natural gas generator with CHP

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Green Power
Certification:	ISO CE
Model Number:	QC

Payment & Shipping Terms:

Price:	$10,000.00 - $25,000.00/sets
Packaging Details:	Packed in standard seaworthy packing such as plywood case.
Supply Ability:	500 Set/Sets per Month

Contact Now

Detailed Product Description

Warranty:	3months-1year	Rated Voltage:	400 / 230V
Rated Current:	18 - 1800A	Speed:	1500 / 1800rpm
Frequency:	50 / 60HZ	Port:	Qingdao Port Or Other China Ports

Main Products

Main Products

We produce gas generator sets, diesel generator sets

and related spare parts.

Genset Types

Open Type / Silent Type / Containerized Type

Trailer Type / CHP Unit etc

OEM Service

Meet customers' special needs.

Gas Fuels

Biogas, natural gas, LPG, coal mine gas, oil associated gas, landfill etc.

Application Fields

Industries, energy, railways, telecommunications, navigation, chemical industry, mining, water conservancy, construction, islands, farming and other fields.

Engine Brand Parter

Steyr / DEUTZ / Cummins / ISUZU / MITSUBISHI / Perkins / Lovol / MTU / Volvo / DOOSAN etc optional

Alternator Brand Parter

Stamford / Marathon / Leroy-Somer / Stamford Copy etc;

Brushless Alternator

Control System Parter

Smartgen / Deepsea / ComAp / DEIF etc optional

Product Description

Product Features

* High power and maximum efficiency
* Low operating costs as a result of low levels of lubricant and fuel consumption as well as extended service intervals
* Low emissions due to state-of-the-art combustion technology
* Low space requirement due to compact design
* Reliable in use thanks to field-tested technology
* Long service life resulting from application-specific design

Standard Specifications

Air Inlet	* Mounted air filter
Gas/Ignition System	* Air/Fuel mixer; automatic adjustment according to fuel gas characteristics * Individual cylinder ignition coils mounted direct to the spark plugs
Lubrication System	* Wet sump with filler and dipstick * Spin-on oil filter
Cooling System	* Thermostatically-controlled system with gear-drivencirculation pump and belt-driven pusher fan * Mounted radiator and piping * Guard for fan and rev parts
Electrical Equipment	* 12/24 volt electric starter motors * Ecu control system * Battery base and power switch * Battery charger
Exhaust System	* Exhaust hose * Silencer (for industrial)
Alternator	* Automatic voltage regulator (AVR)
Control System	* DSE7220 control system * Air circuit breaker (MCCB)
Mountings	* Shock absorber * Manual Oil pump (For an oil change)
Literature	* User Handbook

Product Parameters

GENSET
Genset Type		Open Type / Silent Type / Containerized Type / Trailer Type / CHP Unit etc
Rated Power		8KW - 1500KW
Rated Voltage		400 / 230V
Output Type		AC Three Phase
Speed		1500 / 1800rpm
Frequency		50 / 60HZ
Fuel Consumption		≤0.3m3/KW.h
Noise Level		65 - 100 (db)
Gas Fuels		Biogas, natural gas, LPG, coal mine gas, oil associated gas, landfill etc
Optional Devices		CHP device, soundproof cabinet, automatic grid parallel connection device, emergency cooling system etc

ENGINE
Engine Brand	Steyr / DEUTZ / Cummins / ISUZU / MITSUBISHI / Perkins / Lovol / MTU / Volvo / DOOSAN etc optional
Cooling System	Water Cooled
Speed Governor	Electronic

ALTERNATOR
Alternator Brand	Stamford / Marathon / Leroy-Somer / Stamford Copy etc; Brushless Alternator
Exciter Type	Self- excitation, Brushless with AVR
Insulation Class	H
Protection Grade	IP21 / 22 / 23 optional

CONTROL SYSTEM
Modules Brand	Smartgen / Deepsea / ComAp / DEIF etc optional

Product Details Show

Our Service

PACKING & DELIVERY
Packing	Packed in standard seaworthy packing such as plywood case.
Delivery	Within 25 days after payment received.

PAYMENT & WARRANTY
Payment Terms	* 30% deposit (T/T), balance (70%) to be paid before shipment (for bulk cargo) * 30% deposit (T/T), balance (70%) to be paid after receipt of the B/L copy (for container order) * L/C at sight (for container order)
Warranty	* 1500 running hours / 1 year * During the guarantee period, we freely supply quick-wear parts for the possible problems except for the incorrect operation. * After expiration, we supply cost reasonable spare parts for genset maintenance.

CUSTOMER SERVICE
Pre-sale Service	Recommend proper genset; Tech support; Special equipping design.
In-sale Service	Application tech support; Installation test; Quality control.
After-sale Service	Tech training; Maintenance; Operator Training.
Lifetime Service	Maintenance service; Tech consultancy; Components Supply.
